SE-Design and Implementation

Design

What is architectural design?

A software architectural design is an abstract decomposition of a system into large-grain components, each of which may be a substantial system in its own right.

• Identify subsystems
• Establish relationships between the subsystems

Why is architecture design important?

A good software architecture can help

• Communication
  • Developers in different phases can understand
• System analysis
  • Complexity analysis
• Large scale reuse
  • The reuse of subsystems

How can we assess an architecture?

• Abstraction
• Pattern
• Modularity
• Information hiding
• Independence
• Refinement
• Refactoring

What are the design principles

• Abstraction: Focusing on the essential aspects of an entity while ignoring accidental properties. This can be procedural or data abstraction.
• Pattern: Describing a design structure that solves a particular design problem within a specific context. Patterns should be sufficiently abstract to be reused in different settings. Architectural patterns, design patterns, and coding patterns exist.
• Modularity: The attribute of software that makes a program intellectually manageable, often employing a divide and conquer strategy to handle complexity.
• Information hiding: Design decisions within a module are invisible from outside the module. This helps reduce the impact of changes, facilitates component reuse, and simplifies interfaces.
• Independence: Assessed through Coupling and Cohesion.
  • Coupling: Measures the dependencies between two subsystems. Lower coupling is better. Communicating via parameter passing is generally the best, while communicating via global data is worst.
  • Cohesion: The measure of the functional relatedness within a module or subsystem. Higher cohesion is better. Decomposition should aim for high cohesion and low coupling.
• Refinement: A process of elaboration, which is the opposite of abstraction, moving from abstract concepts to more specific details.
• Refactoring: A method that reorganizes the architecture to improve the design.

What design models have we learnt

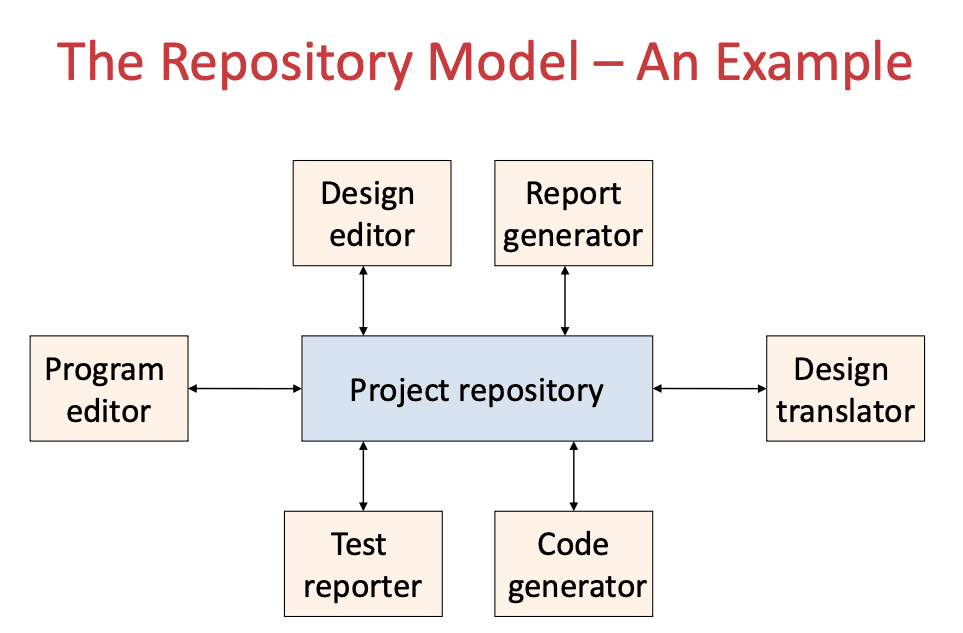

• Repository model
  • Repository is shared by the subsystems
  • Advantages: No direct transmission between two subsystems
  • Disadvantages:
    • The information handling is centralized
    • The changes in repository may affect many subsystems
    • The repository manager is responsible
    • Subsystem cannot have their own policies

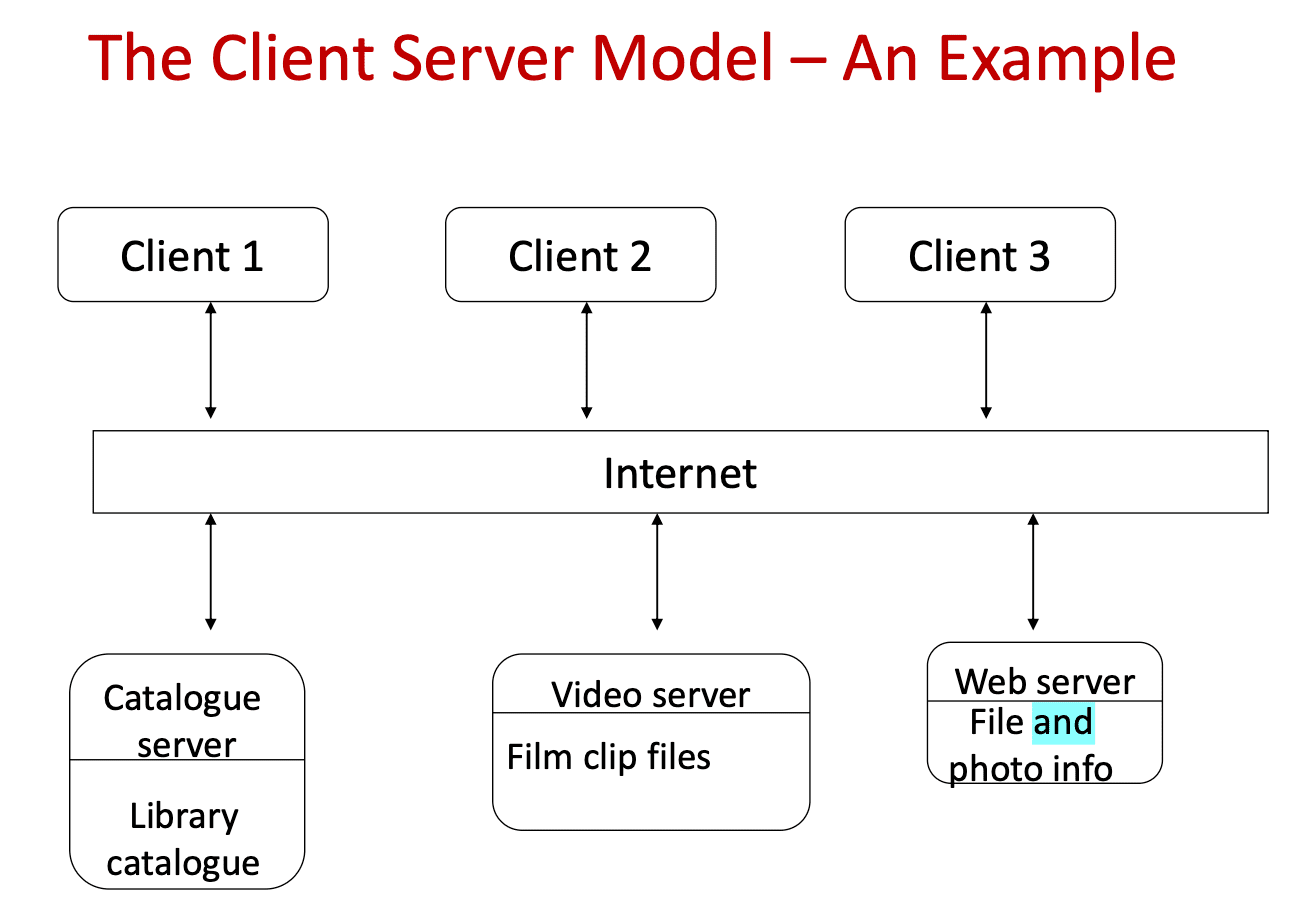

• Client-Server model
  • The services offered by servers can be used by clients through network

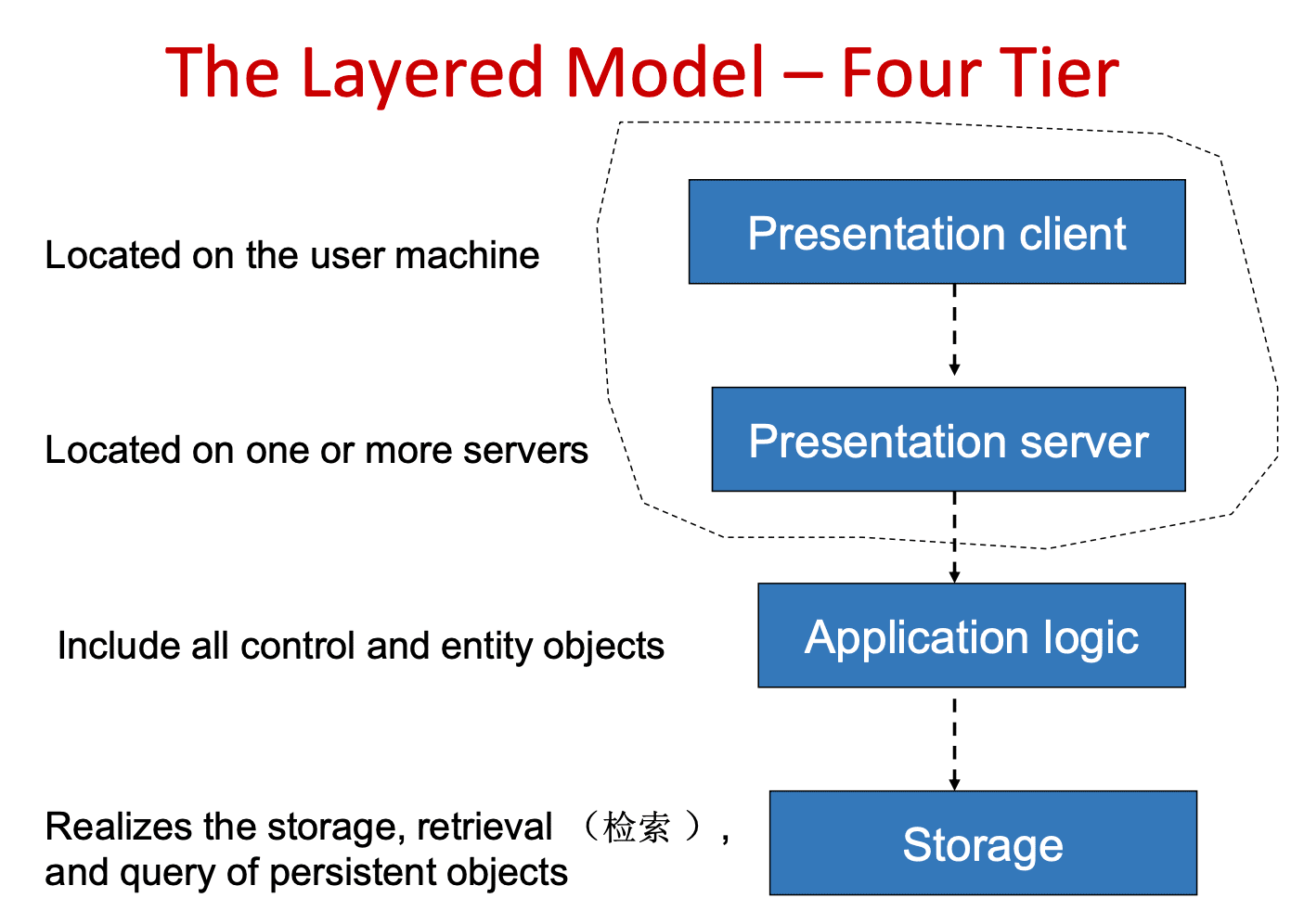

• Layered model
  • The upper layers use the lower layers through defined standard interface

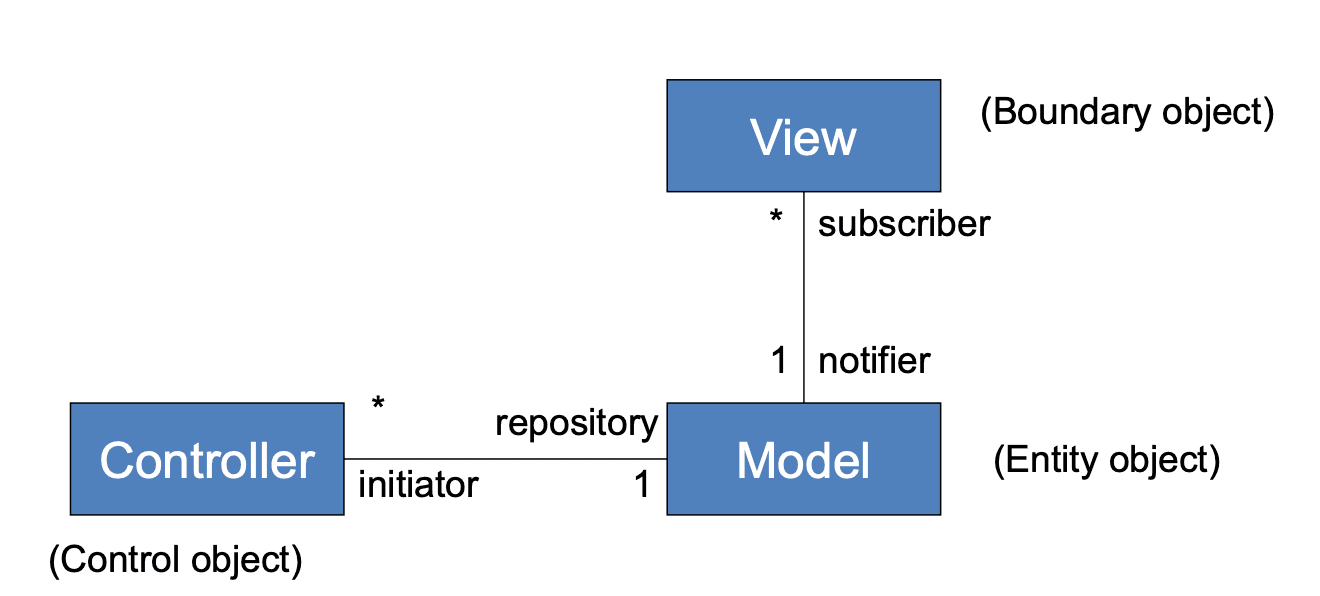

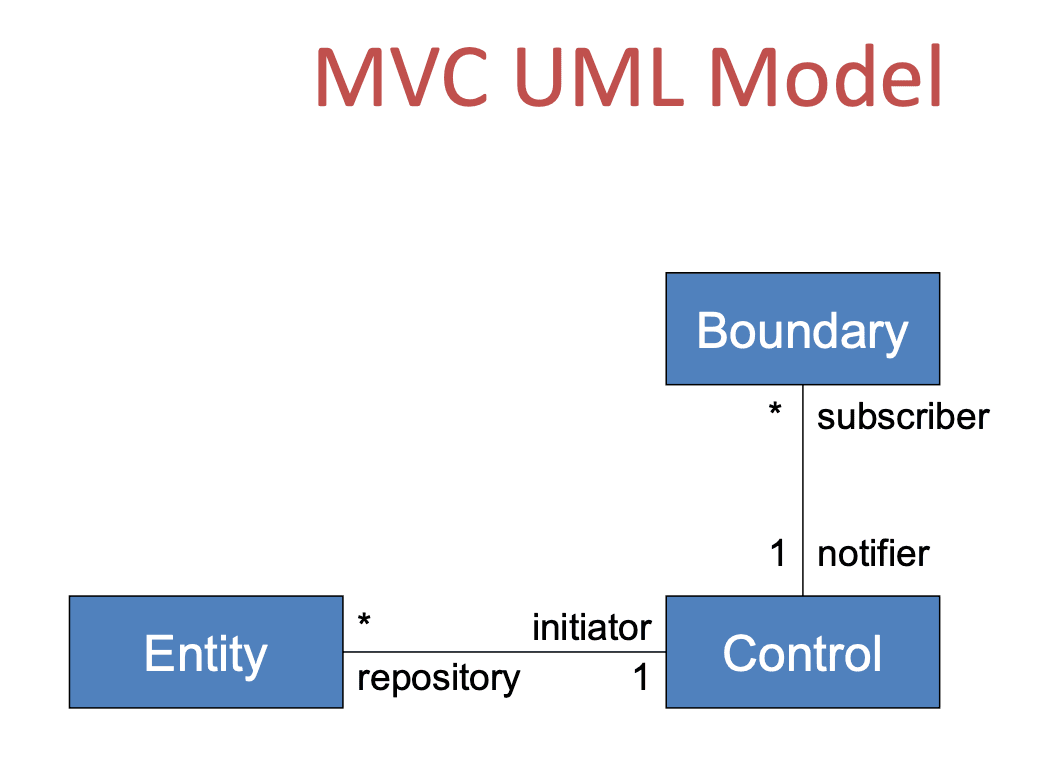

• MVC model (Model-View-Controller) often used in combination with others like the Layered model
  • Model subsystems: maintain the real world objects
  • View subsystems: display the data in model subsystems to users
  • Controller subsystems: manage the sequence of interactions with the users
  • Model does not depend on any view or controller
  • Changes in the models are detected and displayed by view subsystems subsystems

Object-Oriented Software Development

• Develop the software which is a collection of objects that incorporate both data structure and behavior
• OO software development
  • Object-Oriented Analysis (Requirements specification)
  • Object-Oriented Design (Architectural Design)
  • Object Design (Detailed Design)
  • Object-Oriented Programming (Implementation)
• Essence
  • Identify and organize the application domain objects
  • Do NOT consider the representation in programming languages

What is detailed design?

• Detailed design:
  • refine the classes from the perspective of programming,
  • prepare for implementation,
  • Give detailed information for implementation

What do we do in detailed design?

• Refine the classes from the perspective of programming.
• Prepare for implementation.
• Give detailed information for implementation.
• Perform Interface design for classes.
  • Identify missing attributes and operations.
  • Specify the signature of attributes (e.g., range, built-in types).
  • Specify the signature of operations (return type, name, parameters, their types).
  • Specify the visibility of attributes and operations (private, protected, public).
  • Specify pre- and post-conditions for methods if necessary.
  • The goal is to make the class interface more detailed.
• Perform restructuring of the design.
  • This means adjusting the design towards implementation.
  • In Object-Oriented design, this can involve changing n-ary associations to binary, increasing inheritance, collapsing classes into attributes, or using qualifiers.
  • In Structured Design, this involves restructuring the structured call tree based on considerations like Coupling, Cohesion, and Database process.

Why do we need detailed design?

• To refine the classes from the perspective of programming.
• To prepare for implementation.
• To give detailed information for implementation.
• To make the class interface more detailed through interface design.
• To restructure the design towards implementation.

Object-Oriented Design-An Example

• 1. Group objects into subsystems that can be implemented by individuals
  • Assign objects identified in one use case into the same subsystem
  • Create a dedicated 专用 subsystem for objects used for moving data among subsystems
  • Minimize the number of associations crossing subsystem boundaries
  • All objects in the same subsystem should be functionally related.
• 2. Design an architecture for each subsystem
  • Use layered model + MVC model
• 3. Identify the persistent data
  • Each persistent class should be saved in a table
  • Each association should be saved too.
• 4. Refine Architecture
  • Allocate the tables to storage in different subsystem. One table cannot appear in multiple subsystems.

• We can group the objects into subsystems so that they can be developed by individuals.

• A system decomposition can be revised by merging, splitting, and add systems.

• For every subsystem, we can give the further architecture for it.

• The design fundamentals must be followed in the architecture design.
